The specifications are subject to change without prior notice as the quality improves. Taijie Company reserves the right of final interpretation. For more information, please contact the corresponding sales staff.

No matter how complex the challenge you face, you can always rely on Taijie machinery.

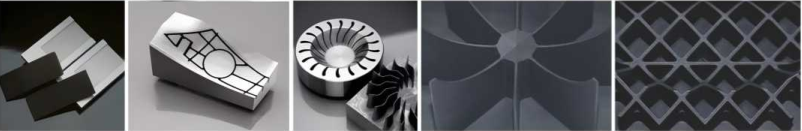

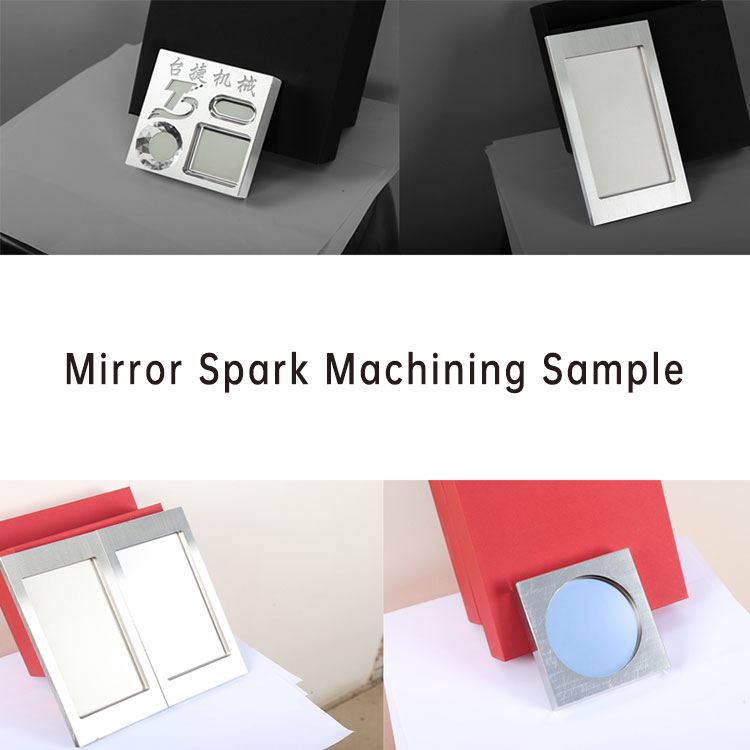

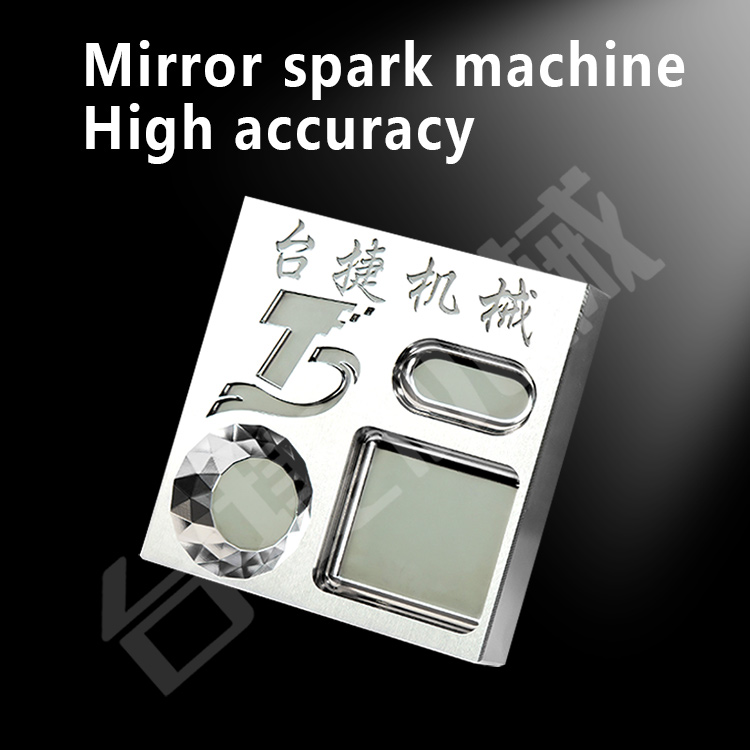

Taijie mirror spark machine can be used in Consume electronics, electrical appliances, Automobiles, military and other precision parts processing and precision mold production.

The above display is part of the industry, more applicable industries, please contact Taijie Machinery for consultation.

The design of rigid and non-structural parts of the main engine and the adoption of high-precision imported key components ensure that the geometric accuracy, kinematic accuracy and machining accuracy of the whole machine reach the domestic standards of similar products.

1. High rigidity column structure, high precision manufacturing standards and high precision retention

The main body adopts a C-shaped bed. The casting is made of strong cast iron with excellent quality. After secondary tempering and long-term aging treatment, the cast iron deformation which may be caused by years of use can be effectively inhibited.

2. Key components of CNC shaft with international quality

The transmission system of CNC shaft adopts imported high-precision lead screw, guide rail and bearing, connected with Panasonic motor, to ensure the characteristics of high precision and high rigidity, and realize the high-precision control of CNC shaft of machine tool.

3. Use superior materials

Granite workbench, good precision is the effective guarantee of precision machining.

4. Use perfect temperature control methods

Adopt temperature sensor, liquid temperature controller and liquid level controller, standard configuration of fire extinguisher, to ensure the safe operation of user machine tools.

[NC power supply unit part]

The design idea of A1 NC power device is high configuration, high reliability, high automation and friendly man-machine interaction.

1. Configure key components

The main key parts and components of the power supply are all made of international brand products, which is the highest configuration of the current domestic electric machining machine tool to ensure the high reliability and safety of the machine tool.

(1) Adopt advanced industrial computer motherboard control; 15 "high resolution TFT-LCD display; Touch screen input mode; .

(2) Drive system adopts Panasonic full digital AC servo system, semi-closed-loop control;

(3) The CNC system adopts the most advanced large-scale high integration FPGA chip in the world.

2. Brief description of technical performance

(1) The power supply adopts the most advanced international discharge control and numerical control technology; Equipped with super finishing circuit and high speed response, stable machining servo system.

(2) The power supply has 135 shaking modes;

(3) Partial digestion and absorption of foreign advanced technology for discharge control, using the latest upgraded circuit technology and process database software.

3. Discharge machining process database software

The system is equipped with a rich process software database, a variety of electrode and workpiece combination, can carry out a variety of materials automatic processing and manual processing:

Especially for the processing of some special materials, the machine provides users with a wide range of options: such as the processing of hard alloy materials, high-temperature alloy materials, titanium alloy materials, power has a strong pertinence, processing surface metamorphic layer is small, surface hardness (HRC) influence small advantages.
